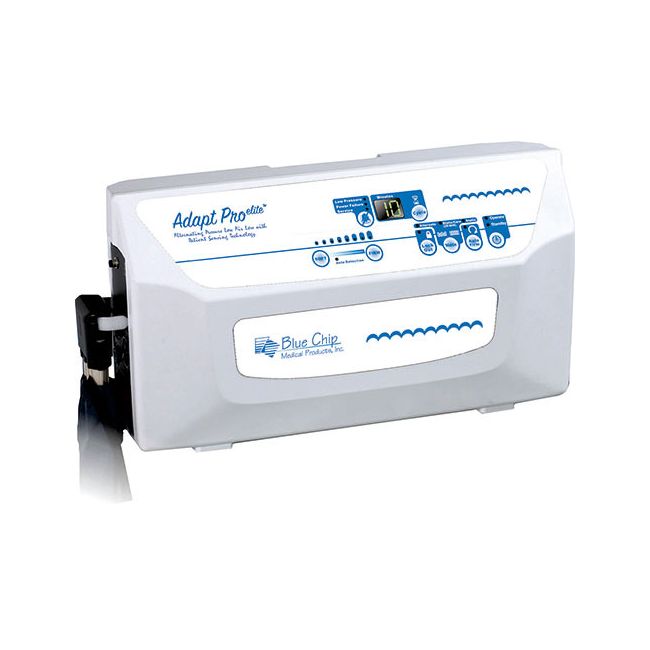

REPLACEMENT PUMP
ADAPT PRO ELITE
Model 9201

• PUMP CONTROL MODES & FEATURES:
  Control Unit includes modes of operation:



  • Alternating Mode
    Alternating pressure provides the therapeutic
    benefit of reactive hyperemia and redistributes pressure well below 32mmHg.
  • Static Mode
    Static mode provides gentle low air loss with constant pressure redistribution and support. This allows nursing to perform patient care.
  • Static Care Mode
    Falls back to Alternating in 20 mins.
  • Pulsation
    Immersion Therapy (optional function)

  AUTOMATIC PATIENT SENSING TECHNOLOGY:

  • Auto Detection (PST)
    Monitors patient & adjusts every two hours.

  • 2-Stage Fowler Function
    Adjusts pressures in the sacral area based on patient position. Incline 30º (LL) increases 10%, 40º (LH) incline increases by an additional 5%. Reduces sliding and skin shear.

  • FEATURES:
  • Patient Comfort Control
  • Cycle Time 10 – 30 minutes
  • Auto-Firm with Fall Back
  • Lock-Out Mode
  • Easy to read digital display
  • Low Pressure & Power Failure Alarms
  • Heavy-duty dual compressor


Deluxe adjustable hanger brackets secure control unit to fit all makes of hospital beds.Easy access filter reduces damaging dust particles for maintenance free use.

• 16.5″L x 9″W x 5″H
• 10 lbs.
• 120V 60 hz
• UL® 544 Medical Equipment
• 10, 15, 20 Minute Cycle Time
• 9+9=18 Liters per minute Air Flow
• less than 100 micro amps Current Usage
• 0.1 ohms maximum Grund Resistance
• 12 ft. cord
• ABS fire retardant UL 94V-0 construction
• 1 Year limited warranty
