Therapy: 4 therapies, Lateral rotation, Alternating pressure, True low air loss, Pulsation Use: Prevention and treatment of Stages I-IV pressure ulcers. Size: 36" x 80" x 9" Supports: 650 lbs Core: 18 independent 9″ deep air cells Cover: Fluid Proof, Anti Microbial Rests: Includes Head Rests & Leg Abductors

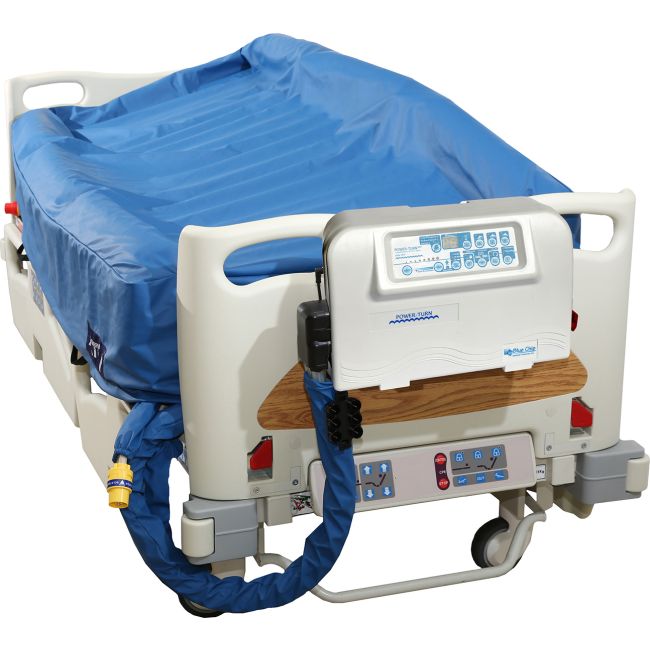

Power Turn Elite™ Lateral Rotation Mattress, Alternating Pressure Mattress System w/ True Low Air Loss Blue Chip Medical
Four clinically effective therapies in one versatile portable system:
Lateral Rotation
Alternating Pressure
Pulsation/Immersion
True Low Air Loss.
The Model 9800-A offers advanced automated wound care functions including auto-detection and a two-stage Fowler function. The durable dual bladder mattress design utilizes 20 independent 9″ deep air cells providing advanced pressure redistribution in a 2 up/1 down series. This ensures superior patient comfort, support and the prevention and effective treatment of Stages I-IV pressure ulcers. Lateral Rotation Therapy reduces the risk of pulmonary complications for patients who are immobile. A Full, Left or Right Turn mode is offered. Pulsation mode offers an immersion therapy. The mattress is designed to fit all standard hospital beds and includes a static air base. Inflatable side rail safety bolsters are optional. The Power-Turn® Elite Model 9800-A is offered in 36”, 42” & 48” to support 650 lbs. to 1000 lbs. The user-friendly controls and ease of setup make Power-Turn Elite™ Model 9800-A , ideal for institutional use. Power Turn meets Federal and State fire control safety standards.
Vyvex-I True Low Air Loss Cover: Low Air Loss therapy is incorporated into the mattress cover, transferring moisture away from the patient’s skin, and maintaining the optimal micro-climate control. This advance allows the Power Turn Elite™ 9800-A to provide optimal therapy while maximizing patient comfort. The air cells are constructed of TPU, thermal polyurethane material. This combination ensures strength, durability, and patient comfort. Vyvex-I™ is a low shear, low friction nylon cover fabric that is washable, anti-microbial, fluid-resistant, and fire retardant. The loose fitting cover conforms to the patient.
PUMP CONTROL MODES & FEATURES: Alternating Mode Alternating pressure provides the therapeutic benefit of reactive hyperemia and redistributes pressure well below 32mmHg. 10, 15 & 20 minute cycle times. Lateral Rotation Offers a left, right and full turn and cycle times from 10 – 95 minutes. Static Mode Inflates all bladders for patient care & transfer. Pulsation Immersion Therapy, 5 minute cycle time.
Automatic Functions: Auto Detection Monitors patient & adjusts every two hours to improve therapy and reduce workload. 2-Stage Fowler Function Adjusts pressures in the sacral area based on patient position. Incline 30º (LL) increases 10%, 40º (LH) incline increases by an additional 5%. Reduces sliding and skin shear.
Fire Safety:
The Power-Turn™ Elite meets California Technical Bulletin #117 for fire retardancy. An optional fire barrier is available to meet the most stringent fire safety requirements when requested for foam base.
