TACTILUS™ PRESSURE MAPPING
Wheelchair Seating
Powerful • Accurate
Reg: $7,190.00 Special Price $5,120.00 You save 29%
Therapy: Alternating Air Pressure Mattress System with Low Air Loss.
Use: Comfort, Support, Prevention and treatment of Stages I-IV pressure ulcers.
Size: 36″ x 80″ x 9″
Supports: 650 lbs
Core: 18 independent 9″ deep air cells
Cover: Fluid Proof, Anti Microbial,
Misc: Designed to fit all standard hospital beds
Tactilus™ - Wheelchair Pressure Mapping System
Surface pressure mapping for the prevention and treatment of tissue injuries
Blue Chip’s seat sensor is an advanced matrix-based tactile surface sensor that provides highly detailed pressure mapping across the full contact surface. With 1,024 sensing points embedded throughout the sensor “skin,” it enables precise spot pressure analysis at virtually any point in the contact area.
This level of accuracy gives seating specialists the patient data needed to design an optimal seating surface that enhances comfort, supports proper positioning, and promotes effective pressure redistribution.
BENEFITS
- Prevent costly tissue injuries
- Create an optimal seating environment
- Simple & Easy to Use
- Monitor patient comfort and safety
- Use evidence-based data for reporting & treatment
- High-resolution imaging
- Store and export patient information
- Improve communication with patients through pictures and visuals
Blue Chip's Tactilus Wheelchair Seat Pressure Mapping system is designed to make advanced surface pressure mapping both accessible and powerful. Its sophisticated, user-friendly interface delivers high-definition clinical data in both 2D and 3D, providing exceptional visual clarity.
Side-by-side cushion comparisons and data-rich displays give specialists the confidence to fine-tune seating surfaces for each individual, improving outcomes through informed, data-driven decisions.
Hose connections
Hose connections feature a transport locking device that ensures the mattress remains inflated for patient transport.
CPR Valve
CPR Valve quickly deflates mattress system for medical emergencies. A simple twist releases air immediately.
Blower Pump
The blower pump is controlled by a micro-processor which allows the caregiver total control of comfort and chosen therapy. Cycle time ranges from 5 to 95 minutes. The blower pump inflates the mattress within minutes, reducing the waiting time for therapeutic treatment to begin.
Optional: Pulsating low air loss pump Model 9511-PS allows caregivers to provide pulsating low air loss therapy.
Optional Expandable Mattress: Power Pro™ VW is an expandable air mattress system that allows for variable mattress widths. Three models 35″, 39″, 42″ supporting 800 lbs, 35″, 42″, 48″ supporting 1000 lbs and 39″, 48″, 54″ bariatric mattress supports 1000 lbs.
|

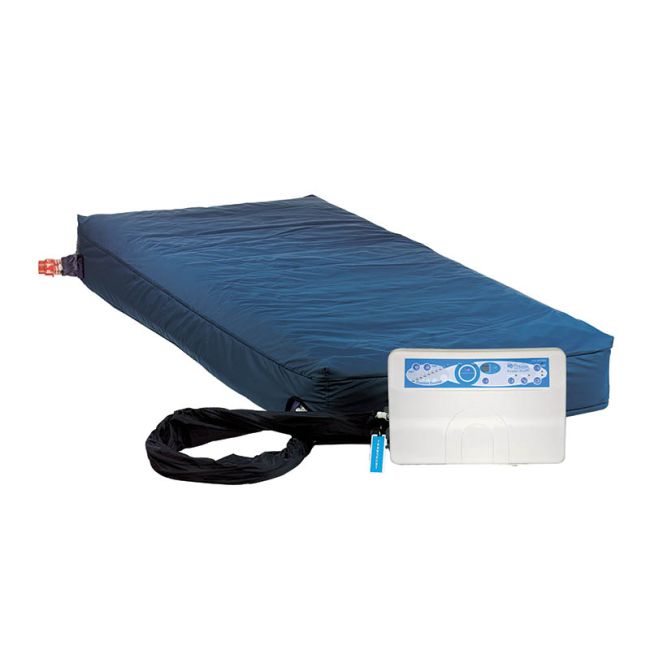

MODEL 9500
|
Power-Pro Elite ™ Bariatric Alternating Pressure Air Mattress - Mattress and Pump |
|
Dimensions:
|
36" x 80" x 9" |
|
Weight:
|
23 lbs. |
|
Air Cells:
|
18 - 9 " deep cells Ventilated bladders with air holes throughout mattress |
|
Mattress Cover:
|
Vyvex-III™ - Urethane coated, multi-stretch, low shear, moisture resistant / vapor permeable quilted cover. Removable, zippered cover, is anti-microbial and meets California Technical Bulletin #117 for fire-retardancy. |
|
MODEL 9501
|
Power-Pro Elite ™ - Pump only | |
|
Dimensions:
|
17"L x 7"W x 10.5"H | |
|
Weight:
|
12 lbs. | |
|
Electrical:
|
120V 60 hz | |
|
Listings:
|
UL® 544 Medical Equipment |  |
|
Cycle Time:
|
5 - 95 Minutes | |
|
Air Flow:
|
1800 Liters per minute | |
|
Current:
|
5A | |
|
Ground Resistance:
|
0.1 ohms maximum | |
|
Power Cord:
|
12 ft. cord with hospital grade plug | |
|
WARRANTY
|
||
|
Pumps:
|
1 Year limited | |
|
Mattress:
|
1 year limited | |
|
Cover:
|
6 months limited | |
| Manufacturer | Blue Chip Medical |
|---|
